The VLX 100 Swing / Entry Door is a single-panel aluminum entry system built around a thin 2.56-inch frame and a multi-point locking mechanism that anchors the door in three places along the jamb. It’s the kind of door Austin homeowners choose when they want a clean, modern front entry without the visual bulk of traditional framed doors. We’re an authorized ViewLux installation partner, which means we install this door exactly to manufacturer spec, with AAMA-compliant methods, so the warranty stays fully intact. Call (254) 322-3468 to talk through sizes, finishes, and a ballpark price for your Austin home.

Call (254) 322-3468

Product Overview – VLX 100 Swing / Entry Door

ViewLux designed the VLX 100 around a simple idea: a swing door should feel as precise as a window wall. The frame profile is just 2.56 inches wide, which puts more glass in the opening and less aluminum around it. That slim profile is the main reason this door shows up on townhouse entries, mid-century remodels, and new builds across Central Austin neighborhoods like Mueller, Zilker, and Crestview.

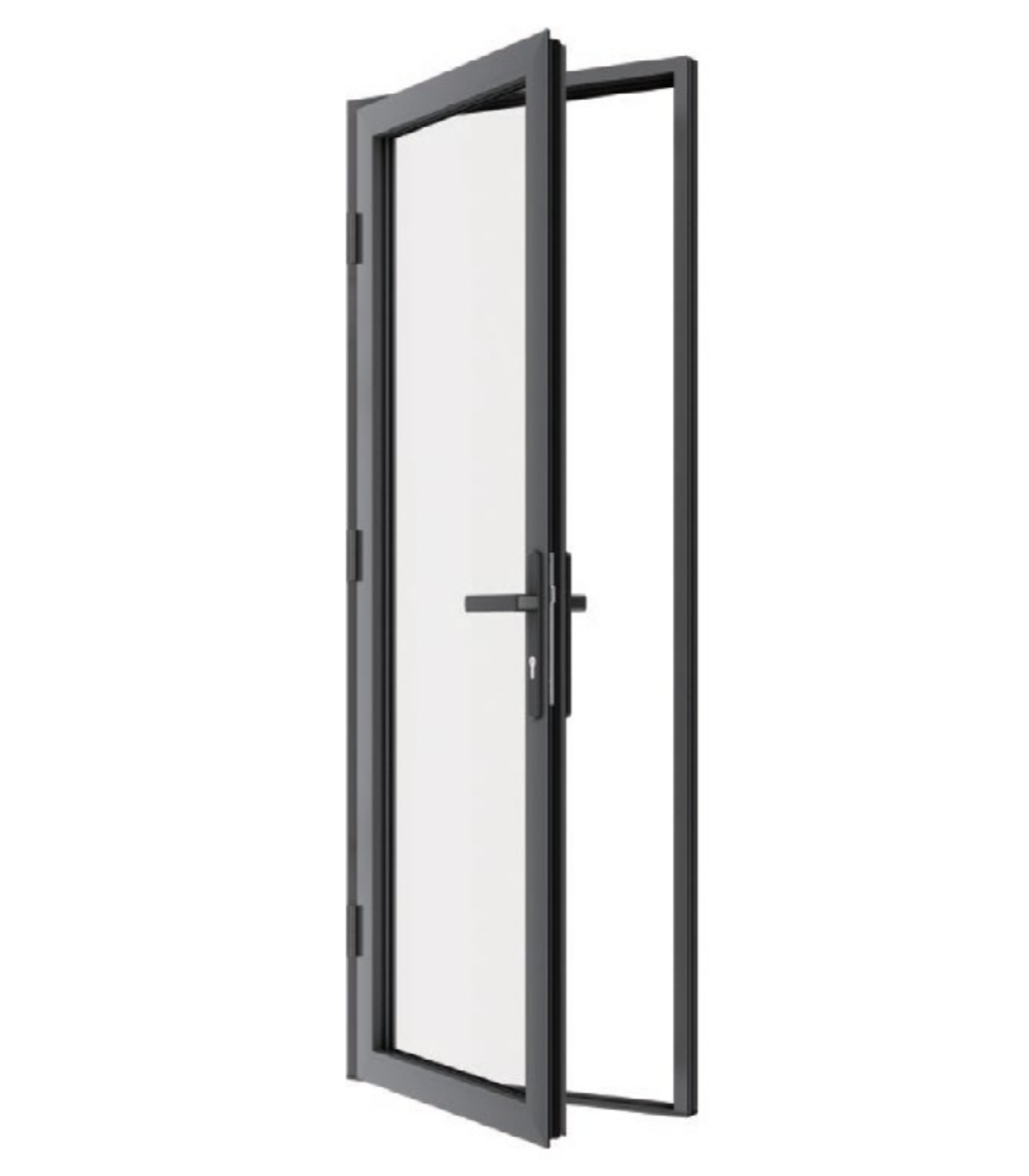

The leaf is a single swing panel, hinged and opened like a conventional entry door, but the hardware is anything but conventional. A multi-point lock engages the top, middle, and bottom of the jamb when you lift the handle. That triple-point contact gives the door a stiffer closed position and better resistance to forced entry than a standard deadbolt. It also helps the door seal tighter against the gasket, which shows up in the energy and acoustic numbers.

Wall thickness is 0.098 inches, which gives the aluminum enough structural integrity to carry the glass load without a bulky profile. The result is a door that reads as a glass plane from the curb, but closes like a bank vault. In our experience installing these across Austin, the buyers who land on the VLX 100 are usually comparing it against steel and fiberglass entry doors, then choosing aluminum because it doesn’t warp in the Texas heat and it holds cleaner lines over time.

Westlight Windows Austin is an authorized installation partner for ViewLux, which means we have direct access to the full VLX 100 line, factory support on technical questions, and a defined installation protocol. That partner status matters when it comes time for warranty support. You’re not calling a third-party reseller. You’re calling the installer ViewLux has vetted for this market.

Technical Specifications

Here’s the VLX 100 Swing / Entry Door broken down into its core numbers and options:

• Profile width: 2.56 inches – slim, architectural frame with clean sightlines from inside and out.
• Wall thickness: 0.098 inches – provides torsional rigidity without adding visual mass.
• Maximum span: Up to 48 inches wide – wide enough to make a statement at a front entry, with engineering margin built in.
• Glass types: Clear, Frosted, Obscure, Low-E, Tempered, Laminated.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Screen options: Retractable screen or none (clean glass look).
• Performance standards: NFRC-rated thermal break; AAMA 2400/2410 installation compliance; AAMA 812 low-expansion foam at all perimeter joints.

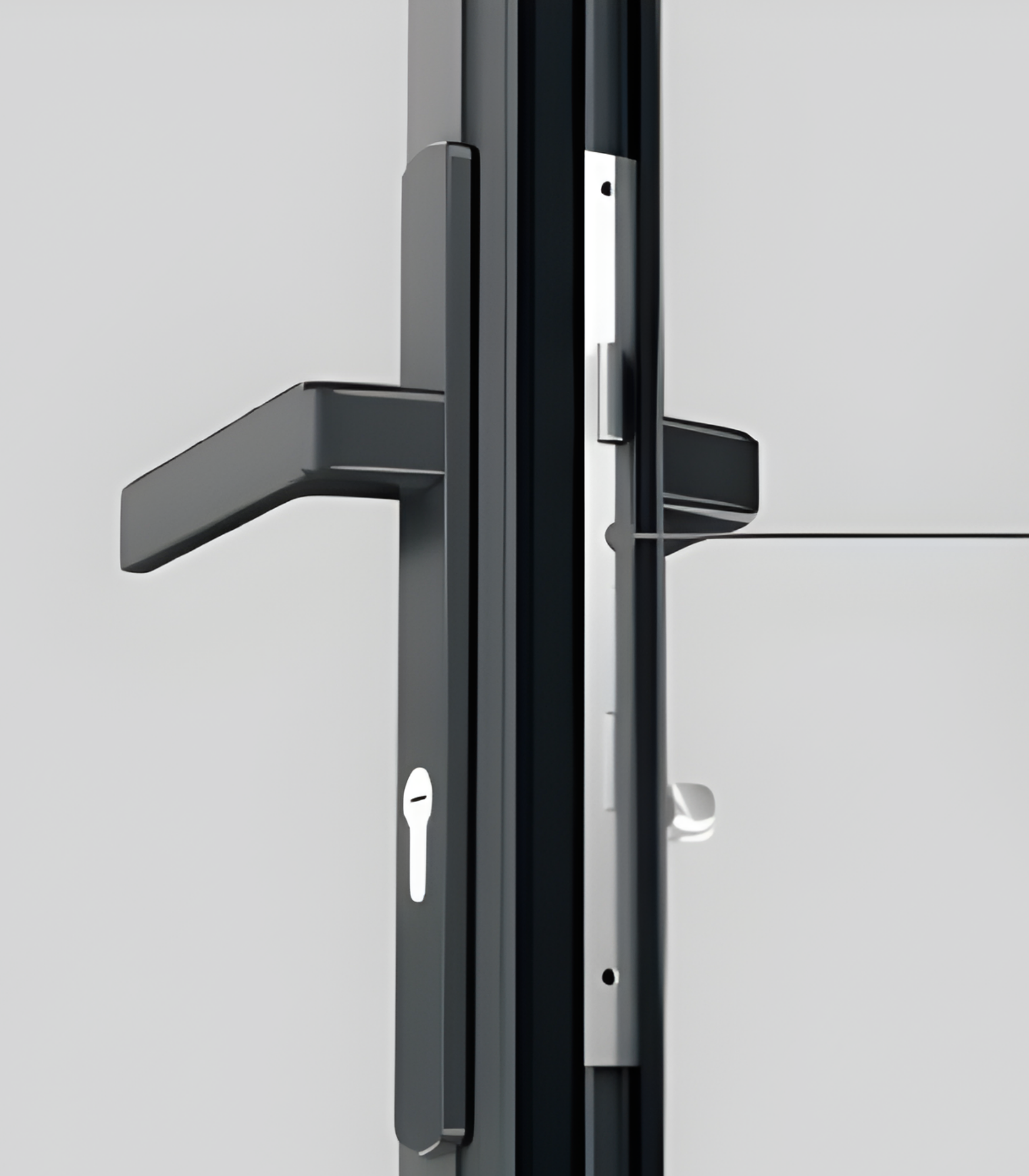

• Hardware: Multi-point locking system engaging three points on the jamb.

Performance Features

Thermal Efficiency
The VLX 100 frame carries a thermal break, which separates the exterior aluminum from the interior aluminum so heat doesn’t conduct straight through the metal. That’s standard on better aluminum systems, and it’s what allows this door to achieve NFRC-rated performance numbers. In an Austin summer, an unbroken aluminum frame would radiate heat into your entryway. The break stops that path.

Acoustic Performance
Aluminum doors have a reputation for transferring sound, but the VLX 100’s compression gaskets and laminated glass option change that equation. Laminated glass, with its clear interlayer, drops sound transmission noticeably. If you live near South Lamar, Airport Boulevard, or the train line through Crestview, this is the upgrade worth pricing out.

Airtightness & Weather Seal
The multi-point lock isn’t just security hardware. Pulling the leaf tight against the jamb at three separate points creates a consistent compression seal around the entire perimeter. That keeps conditioned air inside during August and outside during the January cold snaps we get in Austin. Airtightness ratings on this door are a direct function of that lock geometry.

Waterproofing
Installation matters as much as the door itself here. Every VLX 100 we install in Austin gets an AAMA 812 low-expansion foam sealant on all perimeter joints, then a site water test before we call the job done. The frame’s drainage path handles the water that gets past the outer gasket, but the perimeter seal is what stops wind-driven rain from working into the rough opening.

Wind Resistance
The VLX 100 is wind-load rated for local climate requirements, which for Central Texas means handling the gust fronts that roll through before thunderstorms and the occasional tropical remnant. The 0.098-inch wall thickness and 48-inch maximum span are engineered to keep the leaf stable under pressure, not flexing and breaking the seal.

Security & Hardware
Three-point locking is the headline feature. A standard entry door secures at one deadbolt. The VLX 100 secures at the top, middle, and bottom of the jamb simultaneously. Paired with laminated glass, which resists shattering, you get an entry system that buys you meaningful time against a forced-entry attempt. For front doors visible from the street, that’s a real deterrent.

Color & Glass Options

Six finishes are available on the VLX 100. Premium Black and Pure White are the two we order most often for Austin homes, and for good reason. Black frames have defined the modern farmhouse and contemporary single-story look for years, and white disappears into traditional painted trim. Anodized Silver reads as industrial and crisp, well suited to condo and townhouse entries. Bronze and Champagne land somewhere between warm and formal, popular on stucco and native limestone exteriors in West Austin. Teak Wood brings a warmer, earthier tone that works with mid-century and ranch-style homes.

Glass selection depends on where the door sits and what privacy you need. Clear glass maximizes daylight and sightlines. Frosted or Obscure glass makes sense for side entries, home offices, or any door where you want light without a view in. Low-E coating is the energy play, rejecting solar heat while staying transparent. Tempered glass is the safety standard for door glass, and Laminated adds both security and sound reduction. Many Austin buyers pair Low-E with Laminated for the best combination of efficiency and quiet.

A retractable screen is available if you want cross-ventilation without a fixed screen interrupting the door’s clean lines. It rolls into the frame when not in use, so the door looks identical either way.

Installation by Westlight Windows Austin in Austin

A high-performance door installed poorly is just an expensive air leak. We’ve been installing aluminum and glass systems across the Austin metro for years, and we’ve seen what happens when a general handyman sets a door without proper shimming or skips the perimeter seal. The door sags, the lock throws out of alignment, and the manufacturer warranty quietly dies.

Every VLX 100 Swing / Entry Door we install follows the same sequence. We start with a pre-install inspection of the rough opening, checking dimensions, level, and the condition of the surrounding framing and sheathing. Austin’s humidity and temperature swings mean the opening shifts seasonally. The rough opening already matters.

Next, we set the frame level, plumb, and square. That’s the part that determines whether the door swings true in five years. We shim precisely, then run AAMA 812 low-expansion foam sealant on every perimeter joint. That foam does two things: it seals the air gap, and it won’t push the frame out of alignment as it expands. After the sealant cures, we install the panel, set the multi-point hardware so all three locking points engage cleanly, and run a water test on the sill and perimeter.

Our installation follows AAMA 2400/2410 standards, which are the recognized installation guidelines for fenestration products. The warranty on the VLX 100 requires installation at this level. Improper installation voids the manufacturer warranty, which is precisely why ViewLux partners with installers like us in each market rather than selling through unvetted channels.

Austin-specific considerations come up regularly. The sun punishes west-facing doors from April through October, so we pay attention to glass orientation and Low-E selection. Our building codes require wind-load ratings that rule out cheaper door systems. And our clay-heavy soils shift enough that we check the slab and framing around the opening before we ever drill a hole.

Frequently Asked Questions – VLX 100 Swing / Entry Door

Get a Quote – VLX 100 Swing / Entry Door in Austin

Ready to price the VLX 100 for your Austin entry? Call Westlight Windows Austin at (254) 322-3468 to schedule a free on-site measurement. We’ll confirm your opening dimensions, walk through glass and finish options, and give you a written line-item quote with no surprises. It’s the first step toward a front door that looks like a window wall and closes like a vault.

Written by the team at Westlight Windows Austin, authorized ViewLux installation partner serving Austin, TX and the surrounding metro.
