The VLX 150 Heavy-Duty Sliding Door is ViewLux’s strength-focused aluminum slider, engineered for spans up to 24 feet wide and built around stainless steel hardware that holds up to daily use without sagging or binding. It’s the door Austin homeowners and architects specify when they want a big opening that actually works, year after year. Westlight Windows Austin is an authorized ViewLux installation partner in Austin, TX, which means you get factory-backed installation, correct flashing and sealing, and a door that performs the way the engineering intended. Call (254) 322-3468 to talk through your project.

Call (254) 322-3468

Product Overview – VLX 150 Heavy-Duty Sliding Door

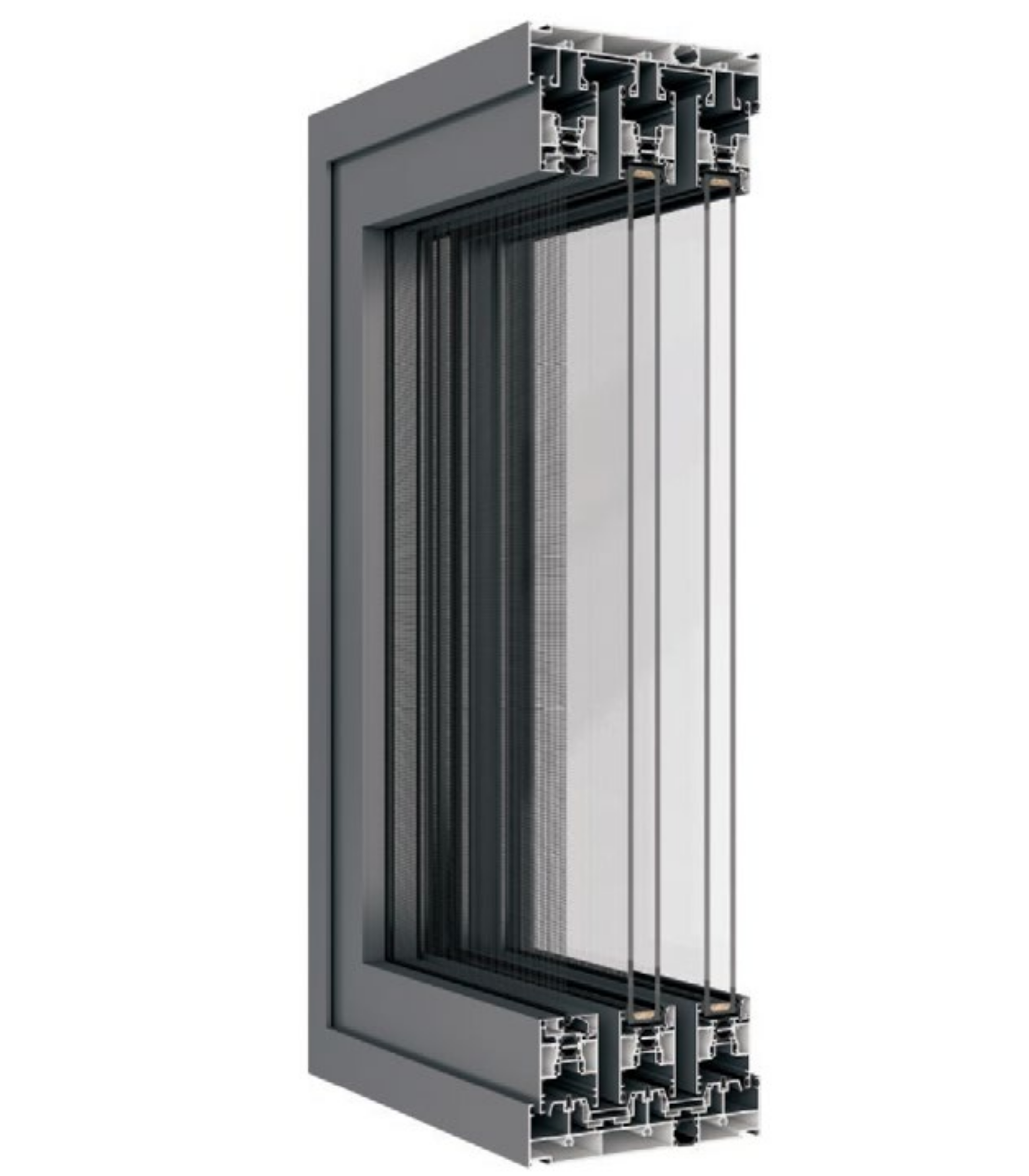

The VLX 150 series sits at the top of ViewLux’s sliding door line for one reason: it’s built to carry serious glass across serious distances. The frame profile measures 2.95 inches wide with a wall thickness of 0.118 inches. That’s a substantial aluminum extrusion, and it shows in the door’s feel. You don’t get that hollow, rattly motion you find on lighter sliders. You get mass, momentum, and a track that stays true.

What sets this model apart is the hardware. The rollers and track assemblies are stainless steel, not plated plastic or zinc. In Austin’s humidity and occasional wild temperature swings, cheap roller components corrode and fail. Stainless holds up. The multi-track configuration options, 2-track, 3-track, and 4-track, let you configure the door around your wall opening rather than forcing the architecture to fit the product. A 3-track setup gives you a wider clear opening when panels stack. A 4-track creates a nearly uninterrupted glass wall when fully opened. The VLX 150 was built for exactly this kind of flexibility.

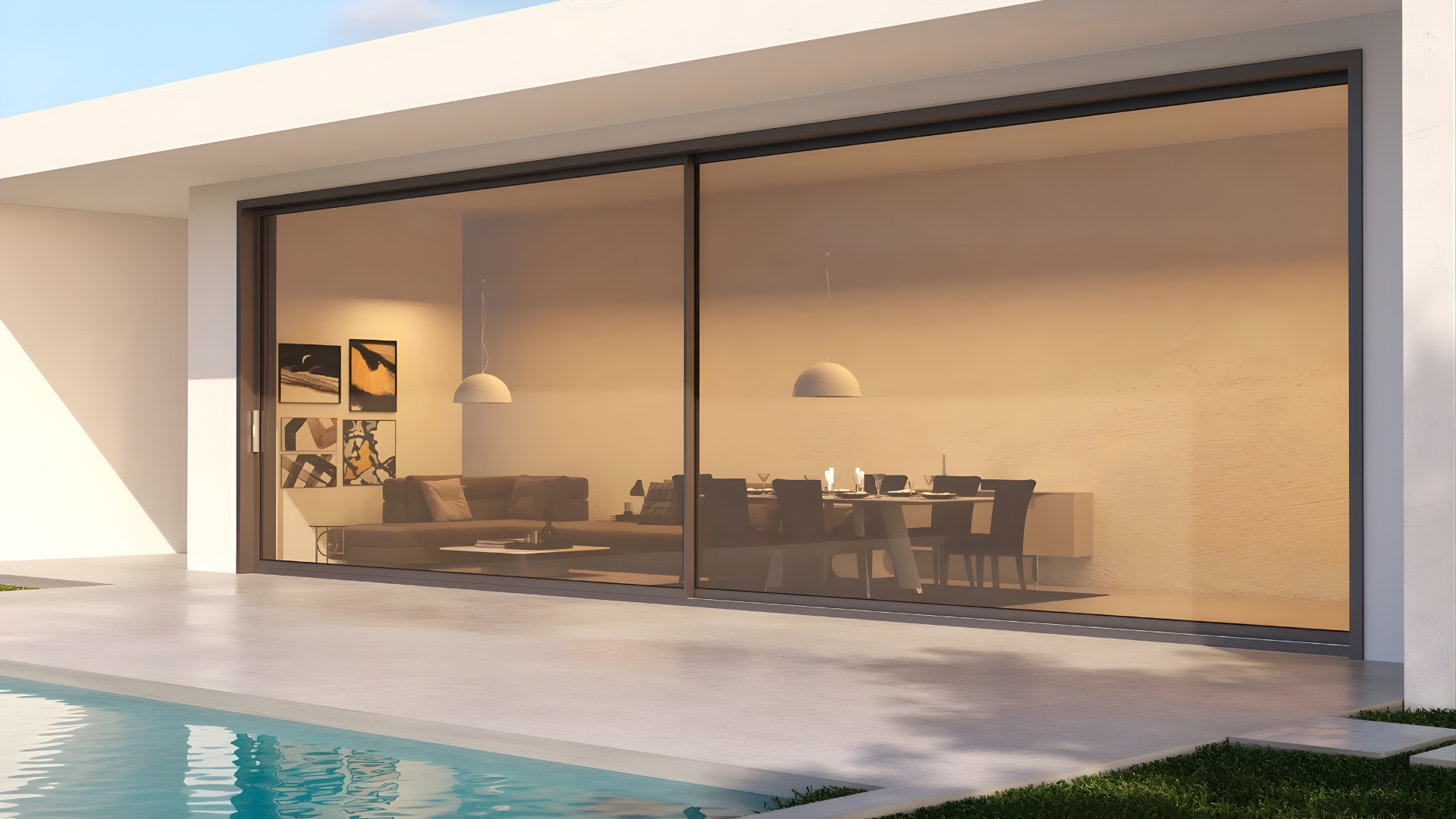

In Austin, the VLX 150 shows up most often in modern builds and mid-century renovations: Lakeway homes with hill country views, Barton Hills remodels that open the living room to a deck, Westlake properties where the owner wants floor-to-ceiling glass facing the greenbelt. It’s a door that reads as architecture, not just an opening.

Technical Specifications

• Frame wall thickness: 0.118 inches. One of the heavier extrusions in its class, chosen for torsional rigidity on wide spans.
• Profile width: 2.95 inches. Slim enough to read modern, deep enough to house the reinforced hardware channels.
• Maximum span: Up to 24 feet wide, depending on panel count and glass package. Most Austin installations we do land between 12 and 20 feet.

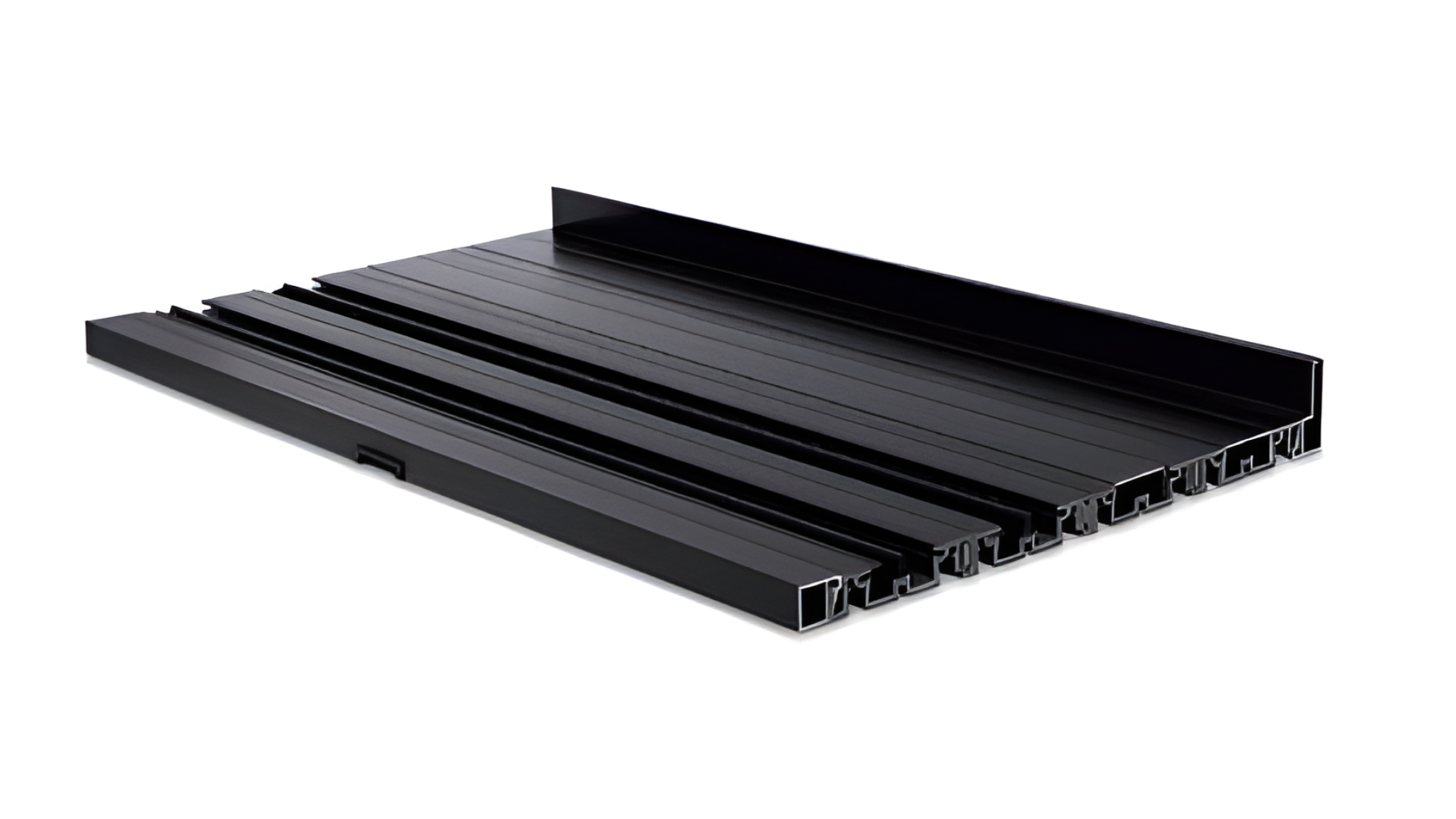

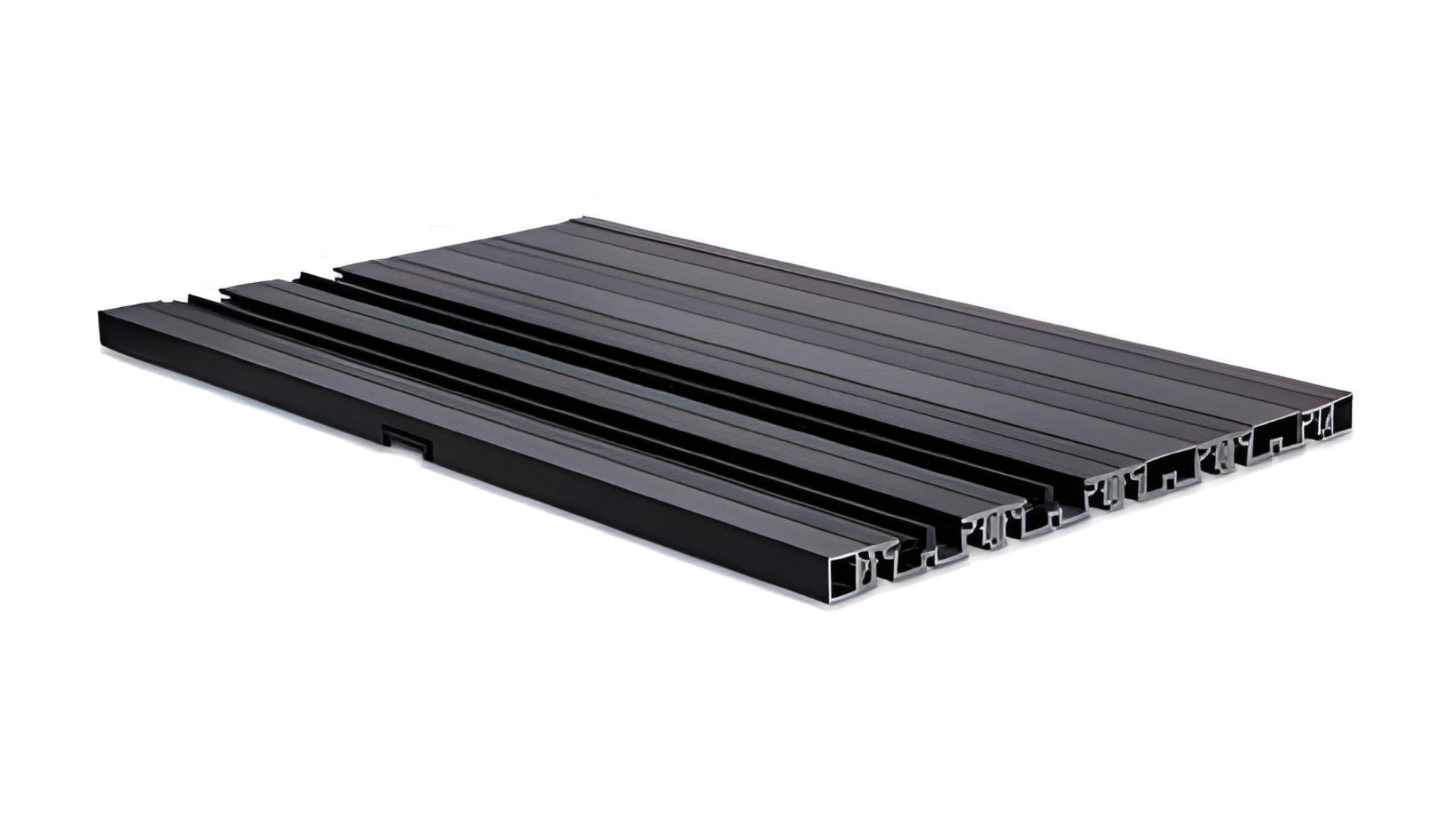

• Track configurations: 2-Track, 3-Track, 4-Track. More tracks mean narrower stacked panels and wider clear openings.
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, Black Tint. All can be combined; Low-E plus laminated is a popular Austin pairing.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood. Powder-coated or anodized depending on the finish chosen.
• Screen options: Retractable screen or sliding screen. Retractable is the cleaner look; sliding is the more affordable route.
• Performance compliance: AAMA 2400/2410 installation standards, AAMA 812 foam sealant on perimeter joints, NFRC-rated thermal performance.

Performance Features

Thermal Efficiency
The VLX 150 frame uses thermal break technology to separate the interior and exterior aluminum surfaces, which cuts heat transfer through the metal. In an Austin summer, that’s the difference between a door that bakes on the inside and one that stays close to room temperature. NFRC-rated energy performance numbers are available per configuration, and Low-E glass keeps solar gain in check on west-facing exposures.

Acoustic Performance
Aluminum is not naturally quiet, but the VLX 150’s gasketing and sealed track design do real work against outside noise. Pair it with laminated glass and the sound reduction jumps noticeably, which is why we recommend laminated to homeowners near MoPac, Lamar, or any of Austin’s louder corridors. The door won’t make a busy street silent, but it will take the edge off enough to change how a room feels.

Airtightness & Weather Seal

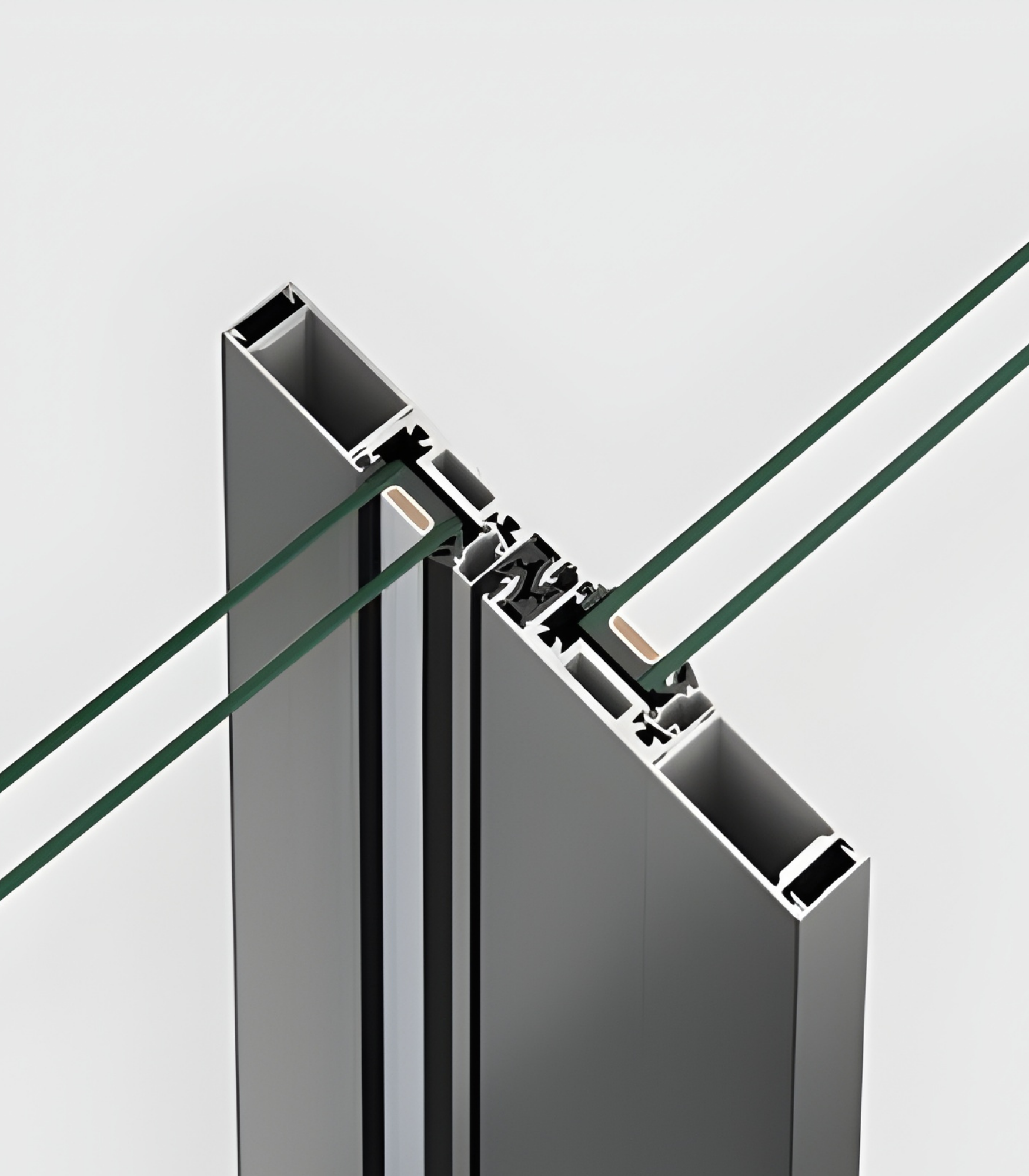

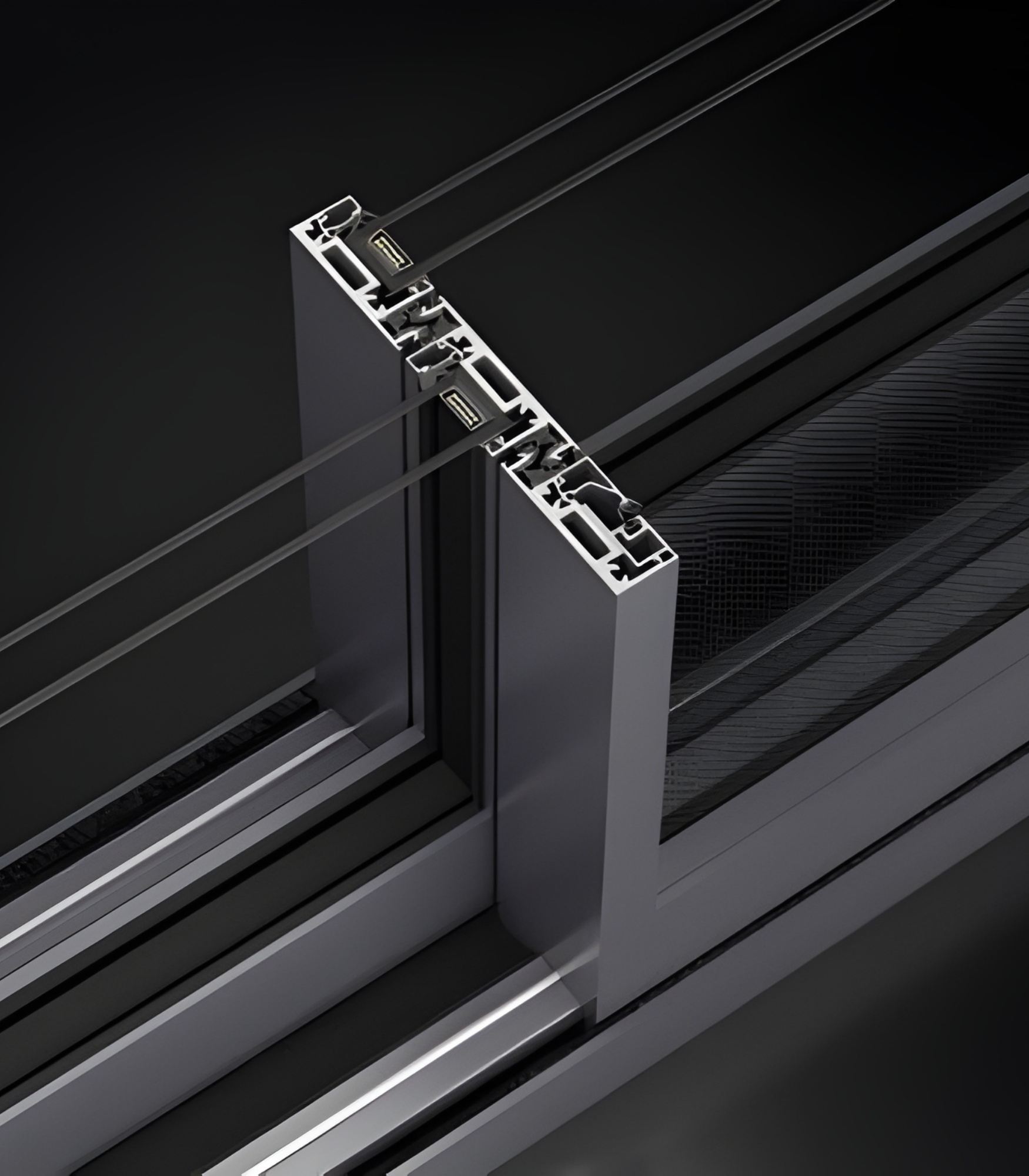

The interlocking panels and compression gaskets create a continuous air barrier when closed. That matters in Austin for two reasons: air conditioning leakage and allergy season. A door that seals well keeps conditioned air inside and cedar pollen outside. We install every VLX 150 with AAMA 812 low-expansion foam on all perimeter joints, which is the standard the industry actually enforces when builders bother to check.

Waterproofing

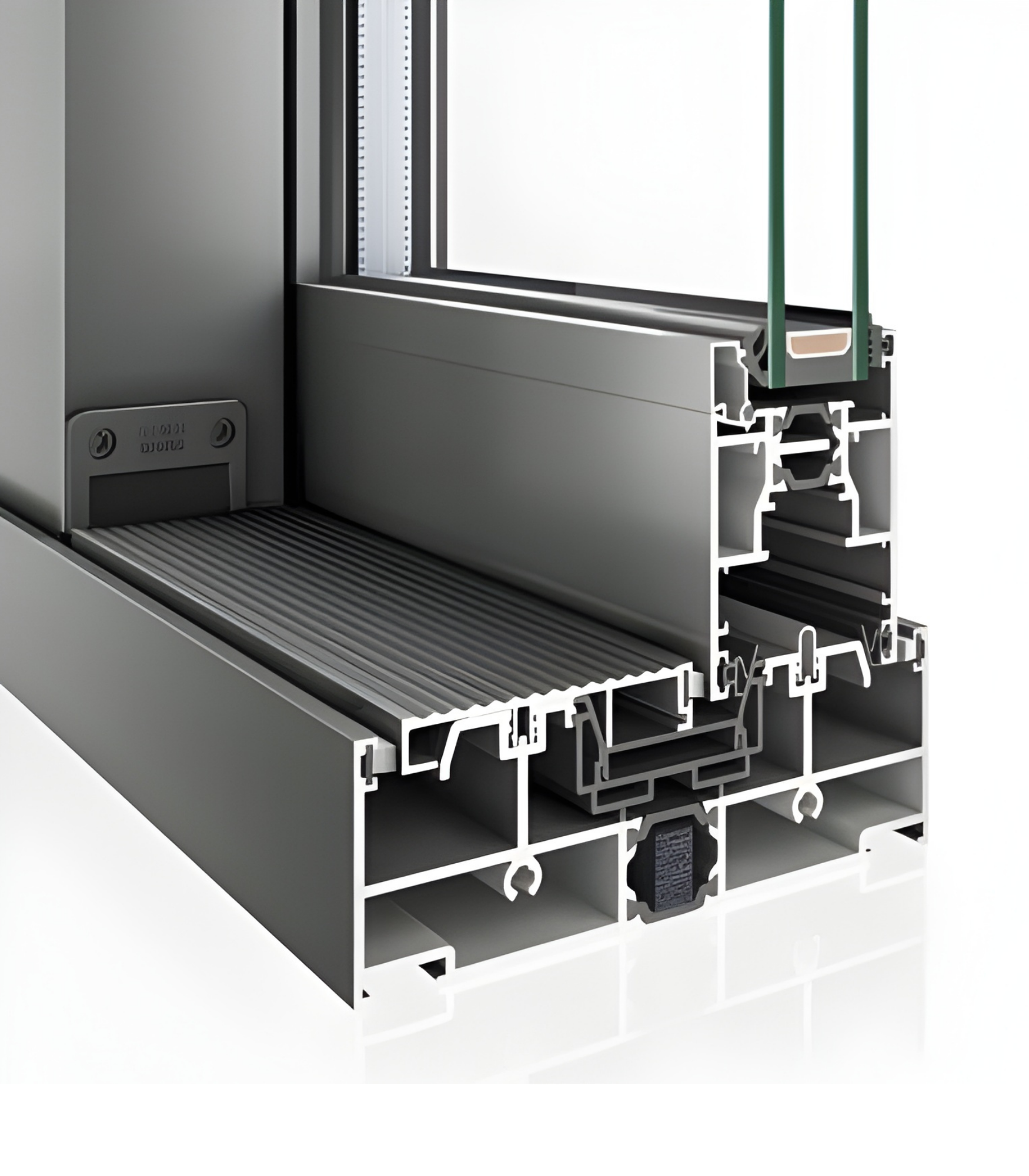

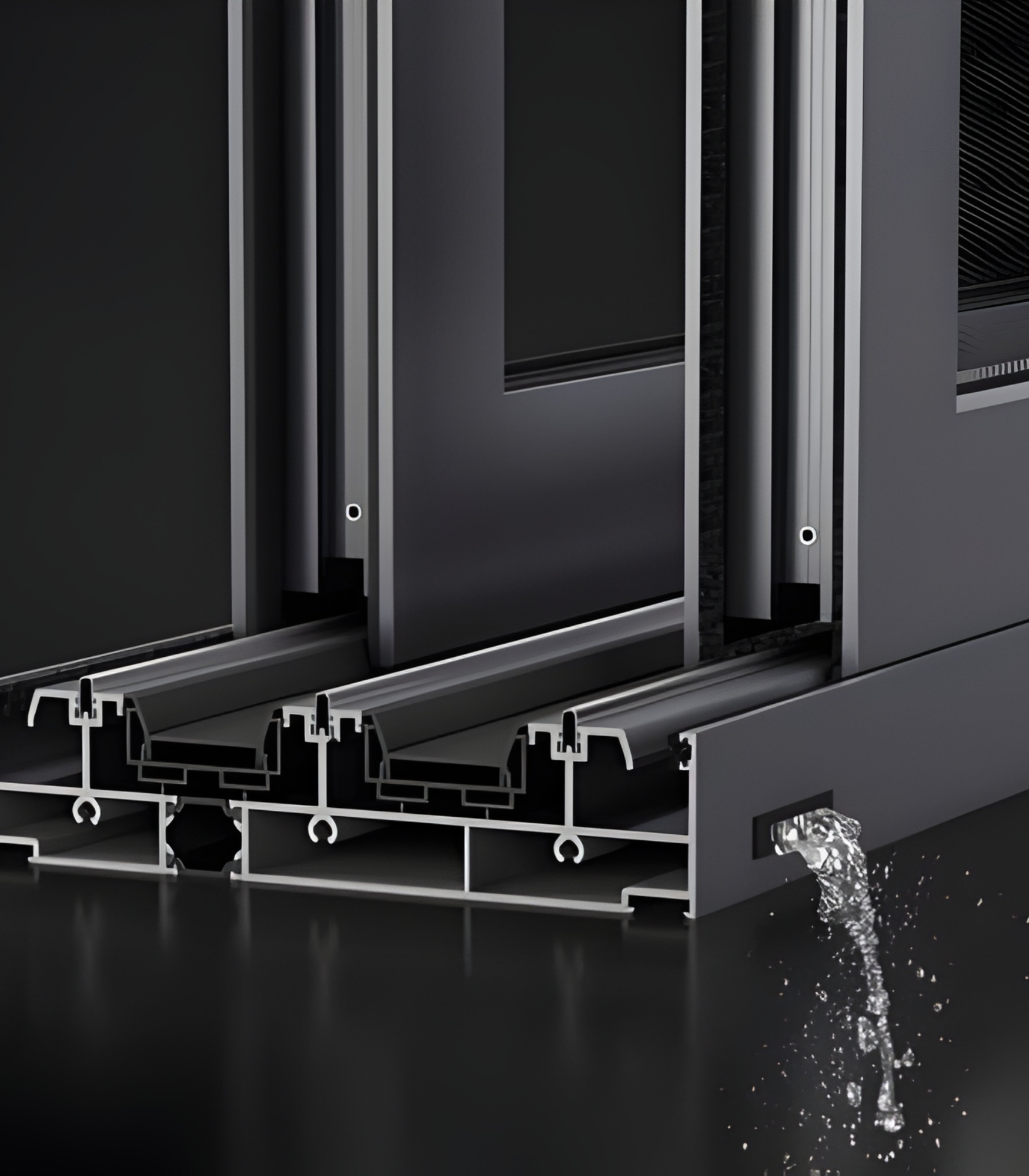

Water intrusion is the failure mode that kills door installations. The VLX 150 has a sloped sill design that directs water away from the interior, plus integrated weep paths for any moisture that reaches the track. Combined with correct flashing and sill pan installation, which is where Westlight’s Austin crew focuses a lot of attention, the door stays dry through the heaviest Texas downpours.

Wind Resistance
The thicker 0.118-inch wall thickness isn’t just for feel; it’s what lets the frame resist deflection under wind load. Austin’s building code requires doors to handle specific design wind pressures, and the VLX 150 is wind-load rated to meet those local requirements. On hilltop sites in the western part of Travis County where gusts get serious, this matters more than most people realize until they see a cheap door bow inward during a storm.

Security & Hardware
Everything that slides or locks on the VLX 150 is stainless steel: roller assemblies, locking points, track guides. The multi-point locking system engages along the full panel height rather than a single latch point. For added protection, laminated glass holds together on impact, which slows forced entry substantially. It’s also the glass type we recommend for code-compliant safety glazing in doors.

Color & Glass Options

The six finish options cover most of what we see specified in Austin. Premium Black and Anodized Silver dominate modern builds, particularly the flat-roof and box-modern homes going up in East Austin and Mueller. Pure White reads crisper and works on traditional limestone homes in Tarrytown and Rollingwood. Bronze pairs well with darker brick and Spanish-influenced exteriors. Champagne is a warmer metallic that suits transitional designs. Teak Wood is a wood-grain finish that gives you the look of timber without the maintenance, which we’ve installed on several Lake Travis homes where the owner wanted warmth without warping concerns.

On glass: Clear is the baseline. Low-E is worth the upgrade in Austin for energy performance. Tempered is safety glazing and required in doors by code. Laminated adds security, sound dampening, and UV reduction. Gray Tint and Black Tint cut glare and heat, though they darken the view, so we usually steer clients toward Low-E unless the wall faces direct west sun all afternoon.

Installation by Westlight Windows Austin in Austin

How a sliding door is installed determines how long it keeps working. We’ve rebuilt enough bad installations around Austin to know this firsthand. A door that isn’t level, plumb, and square will bind on the track, wear out rollers early, and eventually leak. A door flashed incorrectly will rot the subfloor slowly and invisibly until the damage is structural.

Our process starts with a pre-install inspection. We check the opening dimensions against the actual door, verify the floor is flat enough for the sill, and confirm the rough opening framing is sound. During install, the frame gets shimmed and set level, plumb, and square, checked with lasers, not eyeballs. We apply AAMA 812 low-expansion foam sealant on every perimeter joint, which prevents air and water movement at the wall-to-frame interface. All installs follow AAMA 2400/2410 guidelines, the recognized standard for window and door installation in the field.

Austin-specific factors come into play too. The clay-heavy soils in parts of Travis County cause slab movement, which means a door that’s installed perfectly square today can shift slightly over years. We account for this with proper clearances. The heat means sealants need to be rated for high surface temperatures. And on the east side of Austin, wind-driven rain during spring storms pushes water at doors sideways, not just downward, which makes sill pan details critical. After every install, we run a water test on the sill and perimeter, then clean the job site.

One more thing worth saying plainly: installing a door yourself or hiring a handyman to do it generally voids the manufacturer warranty. ViewLux backs their product, but they rightfully expect it to be installed by an authorized partner who follows their documented procedures. That’s what we are, and that’s how we work in Austin.

Frequently Asked Questions – VLX 150 Heavy-Duty Sliding Door

Get a Quote – VLX 150 Heavy-Duty Sliding Door in Austin

If you’re planning a project that calls for a sliding door that spans big, looks sharp, and holds up in Austin’s climate, we’d like to measure your opening and put a written quote in your hands. Estimates are free, and there’s no obligation. Call Westlight Windows Austin at (254) 322-3468 to schedule an on-site measurement or just to talk through whether the VLX 150 is the right door for your project.

Written by the team at Westlight Windows Austin, authorized ViewLux installation partner serving Austin, TX and surrounding communities.
