VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in Austin, TX | Westlight Windows Austin

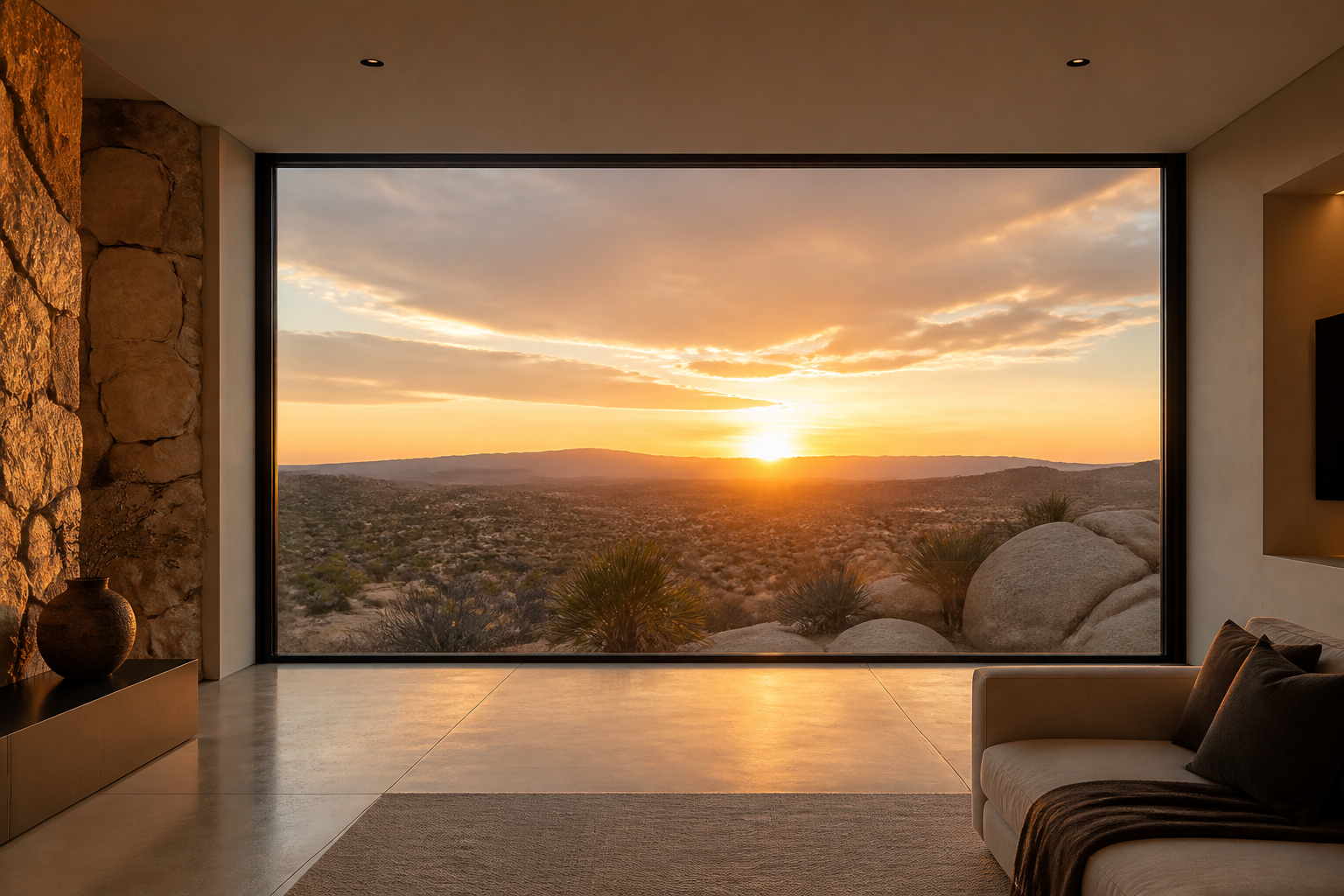

The VLX 80 Fixed / Picture Window is what you choose when the view matters more than anything else. It’s a non-operable window built on a narrow 1.97-inch aluminum frame that holds up to 120 inches of uninterrupted glass. No sashes, no cranks, no visible hardware. Just light and whatever’s outside. Homeowners across Austin, TX use this window for dramatic living room walls, stairwell accents, and any elevation where Hill Country views deserve to stay unobstructed. Westlight Windows Austin is an authorized ViewLux installation partner, which means we supply, install, and stand behind the entire system. Call (254) 322-3468 to talk through your project or schedule a free measurement.

Call (254) 322-3468

Product Overview – VLX 80 Fixed / Picture Window

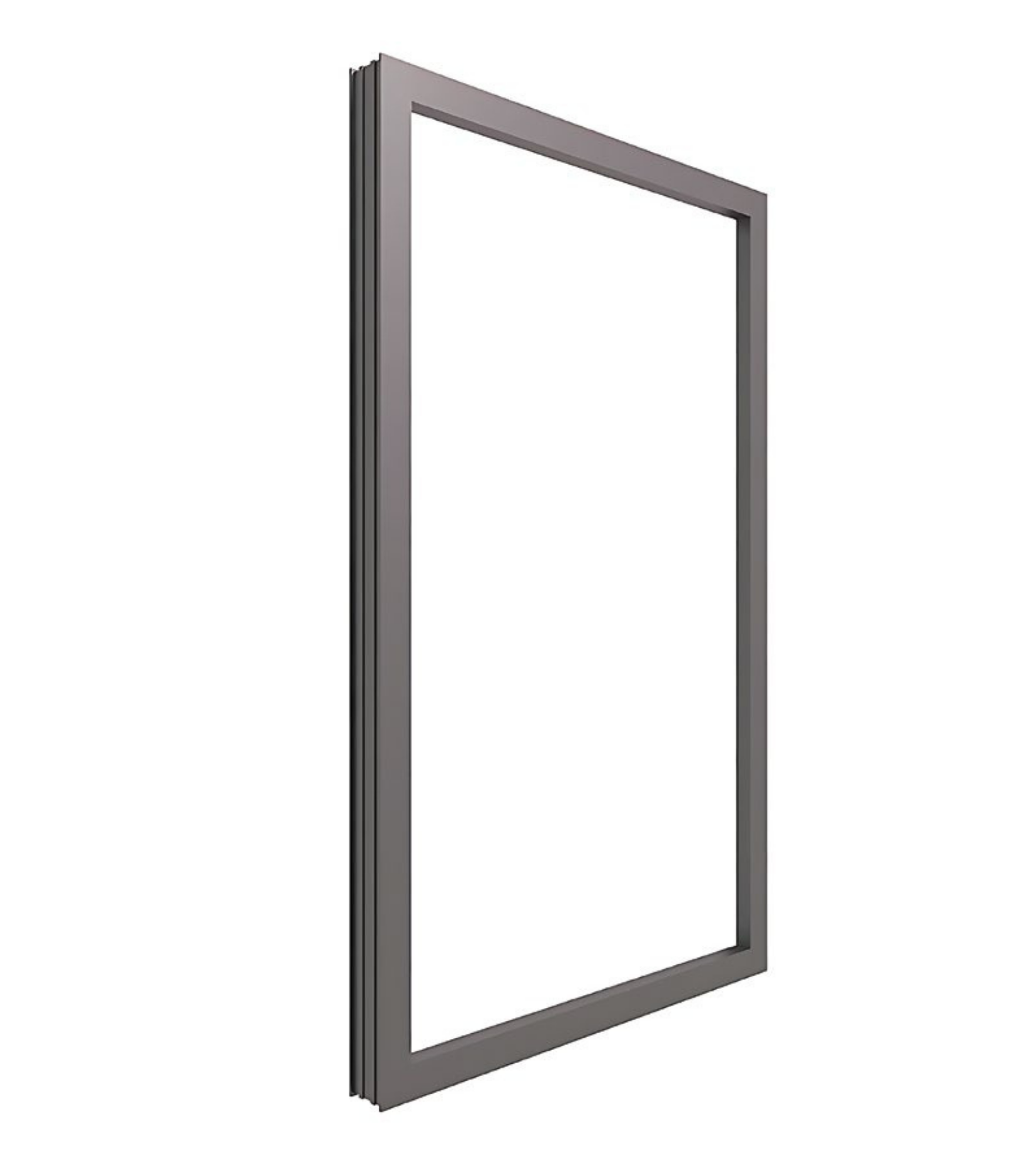

The VLX 80 is a fixed window, also called a picture window, and it does exactly what the name suggests: it frames the outside world without asking much from you. The design philosophy is simple. You get the maximum amount of glass with the minimum amount of frame. At a 1.97-inch profile width, the aluminum border nearly disappears, and with no sash or operating hardware, there’s nothing to break up the view.

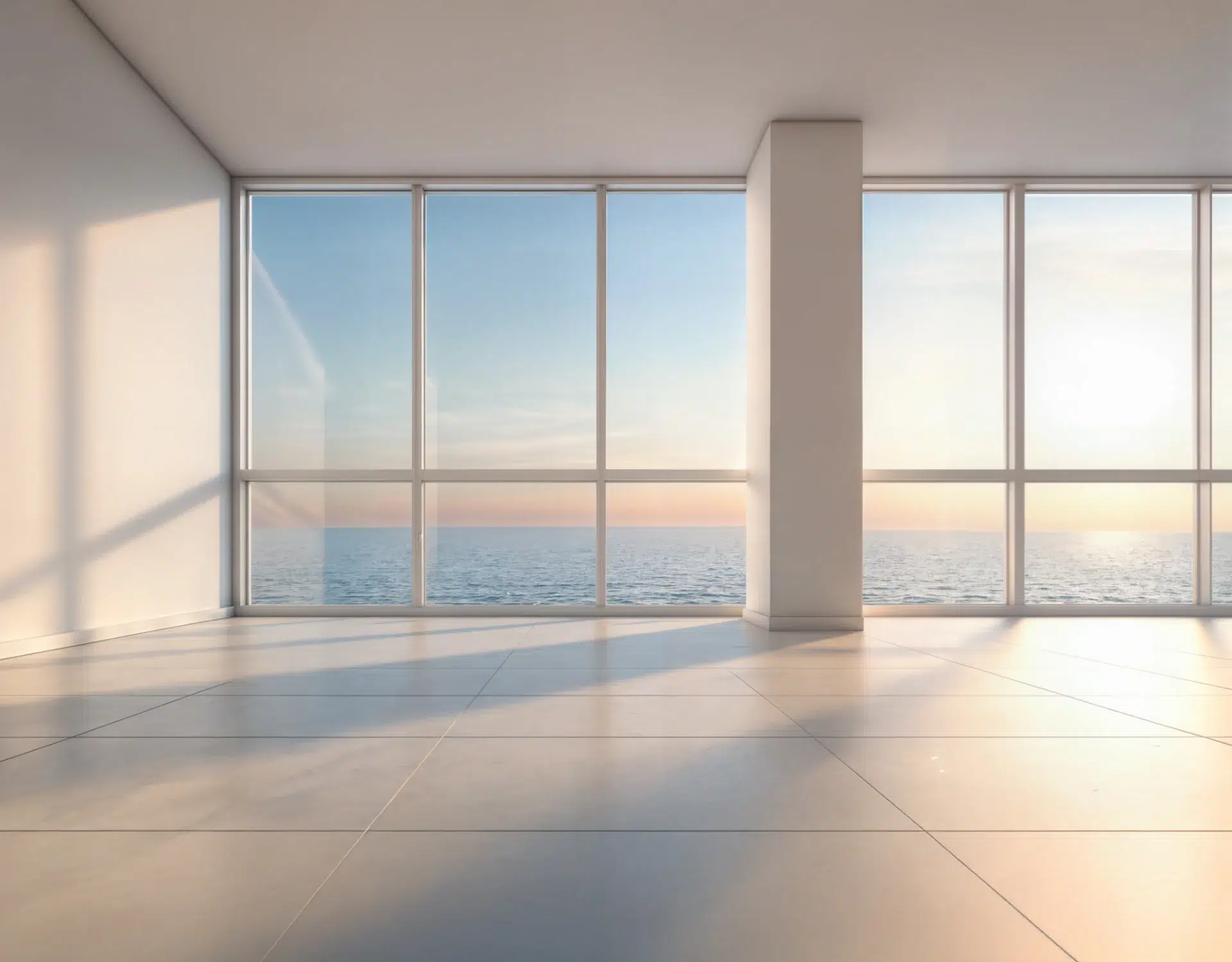

Architecturally, this window fits two scenarios perfectly. The first is the modern Austin home, where floor-to-ceiling glass on a back wall creates that indoor-outdoor feel people move to Texas for. The second is the traditional home that needs a large statement window over a staircase, in a great room, or facing a pool. Either way, the VLX 80 holds its own visually without competing with the rest of the house.

The frame is extruded aluminum with a 0.079-inch wall thickness. That’s structural-grade material. It resists racking, twisting, and the slow sag you sometimes see in vinyl frames over two decades of Texas heat. We see a lot of older vinyl windows in Austin that have bowed under direct sun exposure. Aluminum doesn’t do that. The drawback of aluminum, historically, was heat transfer, but the VLX 80 addresses that with a thermal break built into the frame, which we’ll cover in the performance section.

Westlight Windows Austin installs the VLX 80 as an authorized partner, which means our crews handle this specific product line regularly. That matters when you’re ordering a 120-inch span that has to be set level, plumb, and square the first time. Freight-delivered glass that large is expensive to replace if an installer doesn’t know what they’re doing.

Technical Specifications

• Profile width: 1.97 inches, one of the narrowest aluminum frames in its class, which maximizes visible glass area.
• Frame wall thickness: 0.079 inches, giving the profile its structural stiffness for large openings.
• Maximum span: up to 120 inches wide, which makes the VLX 80 a true floor-to-ceiling option when paired with mulled units or transoms.
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, Black Tint. Low-E is the default recommendation for Austin’s climate.
• Frame finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood. All are powder-coated or anodized for fade resistance.
• Installation standard: AAMA 2400/2410 compliant, with AAMA 812 foam sealant on every perimeter joint.
• Energy rating: NFRC-rated with thermal break technology.

Performance Features

Thermal Efficiency – The frame has a thermal break, which means the interior and exterior aluminum faces are separated by a non-conductive material. That stops heat from marching through the metal and into your living room. Our NFRC-rated numbers on this series hold up well against comparable aluminum systems, and when you pair the frame with Low-E glass, you’re looking at real savings on Austin summer energy bills.

Acoustic Performance – Fixed windows seal tighter than operable ones because there are no moving joints. Once installed and foamed at the perimeter, the VLX 80 cuts down a noticeable amount of street noise. We’ve installed these on homes off Lamar and South Congress where traffic hum was the main complaint. Homeowners consistently tell us the difference is immediate. Laminated glass is available if you want to push sound control further.

Airtightness & Weather Seal – Every perimeter joint gets AAMA 812 low-expansion foam sealant, which fills gaps and stays flexible through seasonal expansion and contraction. That’s a standard part of our install. Air infiltration through the frame itself is minimal because the unit is sealed at the factory and has no operable gaps. The result is a window that doesn’t whistle when a March front blows through Austin.

Waterproofing – Fixed windows fail when water gets behind the frame, not through the glass. AAMA 2400/2410 installation protocol requires a full perimeter seal, proper flashing integration, and weep-path planning. We follow it on every install. After the window is set and sealed, we run a water test on the perimeter to catch any vulnerabilities before trim and drywall go back on.

Wind Resistance – The VLX 80 is wind-load rated for Central Texas requirements, including exposure on upper floors and open elevations. Combined with the structural depth of the 0.079-inch frame wall, it holds up in the storm fronts we get in spring and fall. For homes on hilltops or along exposed ridges west of Austin, a laminated glass option adds another layer of windborne-debris protection.

Security & Hardware – There is no hardware on a fixed window, which is the point. No hinges to pry, no lock to bypass from outside. The glass is set deep into the frame and the entire unit is secured to the rough opening with structural fasteners. For ground-floor installations near streets or alleys, we recommend laminated glass, which holds together under impact and slows entry significantly.

Color & Glass Options

The VLX 80 comes in six finishes, and the right one depends on your home’s architecture. Premium Black is the top choice for modern builds in Austin, especially on white or stucco exteriors where the contrast makes the window read like a deliberate design element. Pure White suits painted brick and traditional builds in areas like Tarrytown and Hyde Park. Anodized Silver gives a raw, industrial aluminum look that pairs well with steel accents and concrete. Bronze and Champagne both read warmer and tend to suit mid-century and Spanish-influenced exteriors. Teak Wood is a powder-coated woodgrain finish that mimics natural timber without the maintenance Austin’s sun and humidity would force on real wood.

On the glass side, Clear is the cheapest and lets in the most light, but you’ll pay for it in heat gain. Low-E is the workhorse in this market and what we quote most often for Austin homes. It reflects infrared heat while keeping visible light transmission high. Tempered is required by code in certain locations near doors and in large floor-to-ceiling spans, and we’ll flag that for you during the design review. Laminated adds security and sound damping. Frosted works well for bathroom or side-yard installations where you want light without a view of the neighbor’s fence. Gray Tint and Black Tint reduce glare and heat but also darken the room, so we typically suggest them for west-facing exposures that get brutal afternoon sun.

Installation by Westlight Windows Austin in Austin

Manufacturer warranties cover product defects. They don’t cover a window that was installed wrong. A large fixed window like the VLX 80 carries significant glass weight, and when wind loads hit it, every stress point transfers to the installation. A frame that’s out of level by a quarter inch can create uneven pressure on the seals. Foam that’s over-applied can bow the frame. Flashing that’s missing behind the trim can leak for years before anyone notices. These are the failures we get called in to fix, and they’re the reason we follow a strict protocol on every install.

Our process starts with a pre-install inspection of the rough opening. We check the framing for rot, measure for square, and confirm the opening dimensions against the ordered unit before the window ever comes off the truck. During installation, we set the frame level and plumb with shims placed at the correct load points. Every perimeter joint is sealed with AAMA 812 foam, the same standard called for in AAMA 2400/2410 installation guidelines. The window is anchored with structural fasteners, the flashing is integrated with the home’s weather barrier, and we run a final water test before we clean up and walk you through the finished product.

Austin’s climate adds a few specific considerations. We’re installing in a region with high UV exposure, 100-degree summers, occasional freezes, and spring storm seasons that can bring straight-line winds. The materials we use for sealing and flashing are chosen to hold up through those cycles without cracking or losing adhesion. And if your home is in a historic district here in Austin, we’re familiar with the additional review requirements that can come with window replacement on contributing structures.

Frequently Asked Questions – VLX 80 Fixed / Picture Window

Get a Quote – VLX 80 Fixed / Picture Window in Austin

If you’re planning new construction or replacing an old window with something that actually shows off your view, the VLX 80 is worth a serious look. We’ll come out, measure the opening, review your glass and finish options, and give you a written line-item quote with no surprises. Call (254) 322-3468 today to schedule your free on-site measurement, or to talk through the project with our Austin-based team.

Written by the team at Westlight Windows Austin, authorized ViewLux installation partner serving Austin, TX and surrounding communities.
