VLX 100 Double Swing / French Door

VLX 100 Double Swing / French Door in Austin, TX | Westlight Windows Austin

The VLX 100 Double Swing / French Door is a paired aluminum door system built for homes in Austin that want real architectural presence without the maintenance headaches of wood or vinyl. It’s the door you choose when a patio, balcony, or interior passage needs a wide, symmetrical opening that actually opens all the way – both panels swing, so you get the full span when you want it. Westlight Windows Austin is an authorized ViewLux installation partner, which means we sell, measure, and install this door with factory-backed training and warranty-safe practices. If you’re researching the VLX 100 for an Austin remodel or new build, call us at (254) 322-3468 and we’ll walk you through pricing, lead times, and what it takes to install one properly.

Call (254) 322-3468

Product Overview – VLX 100 Double Swing / French Door

The VLX 100 Double Swing is what happens when someone decides French doors should stop being flimsy. Traditional French doors sag over time. The hinges loosen, the panels drop, and suddenly you’re shouldering the door shut while weather sneaks through the gap. ViewLux engineered this one differently. The frame holds a 2.56-inch profile with a wall thickness of 0.098 inches – that’s heavier aluminum than you’ll find on most residential door systems, and it’s why the VLX 100 can span up to 96 inches wide without a center mullion breaking up the view.

The design intent is clean: symmetrical sightlines, meaning both door panels read as equals from inside and out. No off-center hardware, no awkward asymmetry. The flush threshold is a standout detail – there’s no raised track to trip over, which makes this door work beautifully for aging-in-place remodels, interior-to-exterior transitions, and any Austin home where indoor-outdoor flow matters. And the multi-point lock hardware engages at three points along the frame instead of one, so the door doesn’t just close – it seals.

We install these across the Austin metro – from Mueller’s modern builds to Westlake’s traditional estates and the Hill Country homes around Bee Cave and Dripping Springs. The door fits both contexts because the frame is thin enough to feel elegant, but the engineering is robust enough to handle Texas sun, humidity swings, and the occasional violent spring storm.

Technical Specifications

Here are the build numbers that matter when you’re comparing this door against other aluminum French door systems in the Austin market:

• Wall thickness: 0.098-inch aluminum extrusion – heavier than standard residential door frames, which is why the VLX 100 resists racking and sag over decades of use.
• Profile width: 2.56 inches – narrow enough to keep sightlines clean, wide enough to house the thermal break and multi-point hardware.
• Maximum span: 96 inches wide total opening – a true double-swing configuration with both panels operational. No fixed dummy panel required unless you want one.
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, and Laminated. Tempered is code-required for any door lite within 24 inches of a door edge. Laminated adds impact resistance and sound dampening.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. All are factory-applied and UV-stable for the Austin sun.
• Screen options: Retractable screen (recessed into the frame, disappears when not in use) or none, if you want a clean, unobstructed opening.

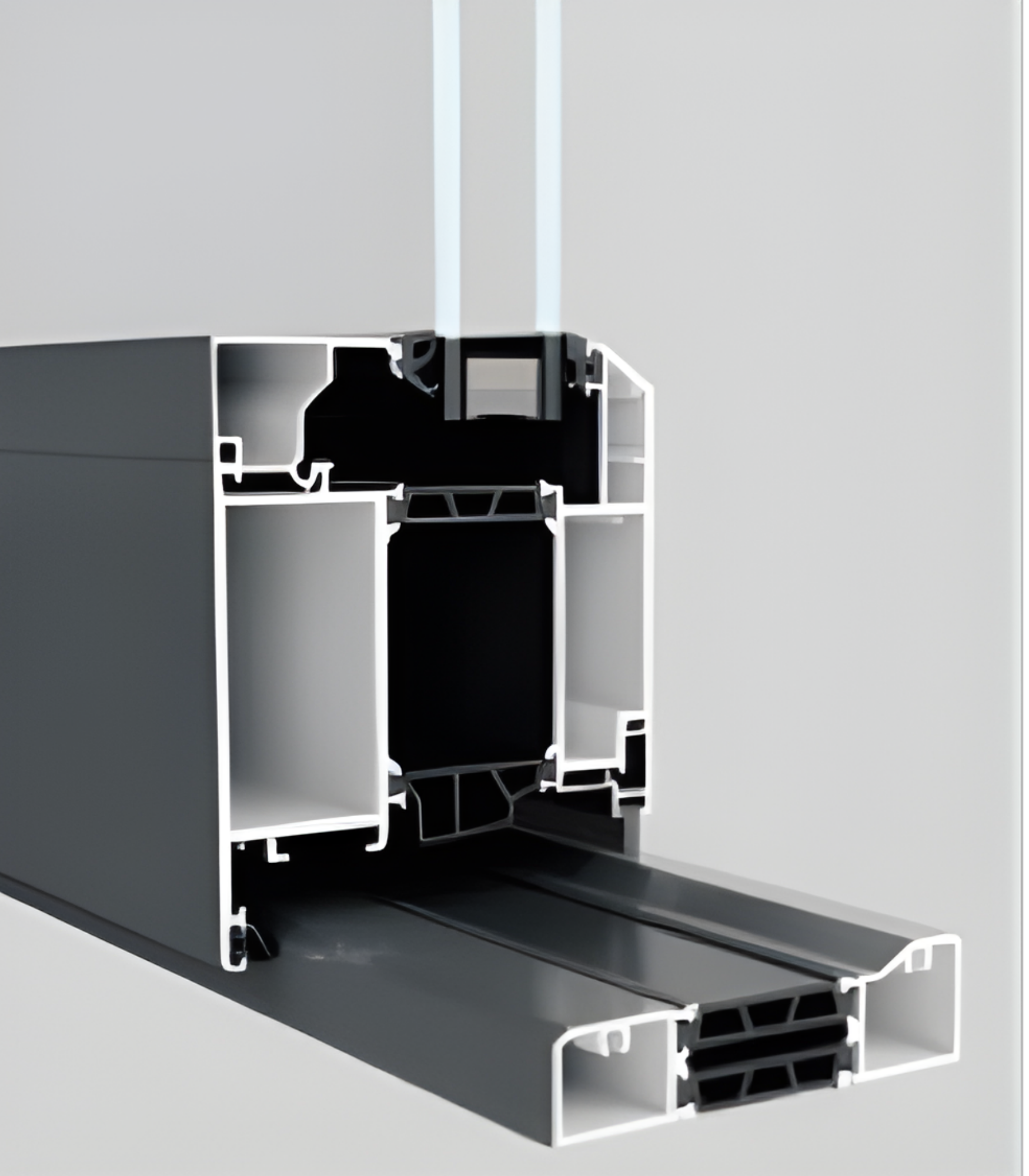

• Sill options: Flush threshold standard, with a low-profile saddle available for exterior applications needing added water protection.

Performance Features

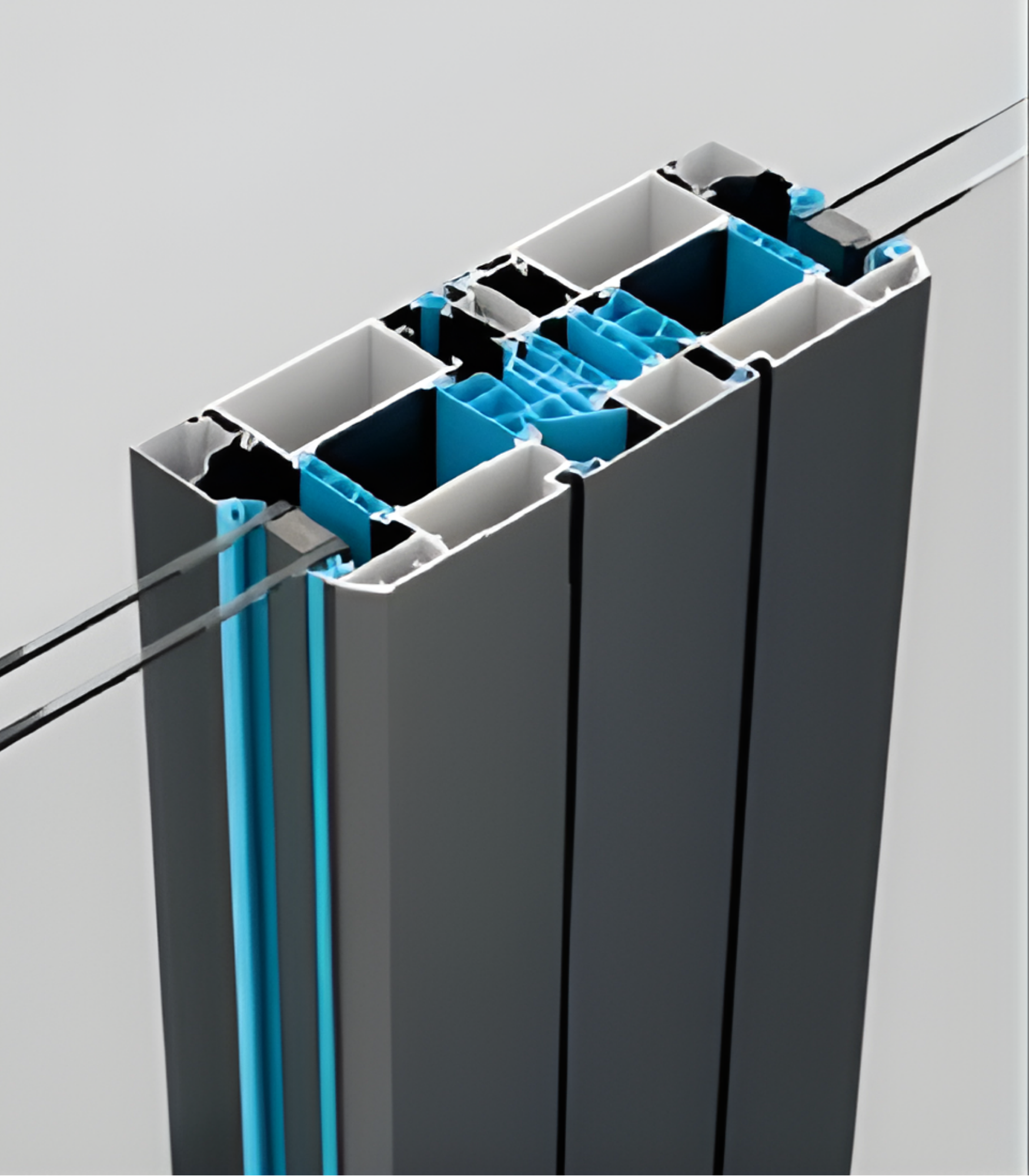

Thermal Efficiency – The VLX 100 frame is built with a thermal break: a non-conductive barrier inside the aluminum profile that stops outdoor heat from conducting straight through the metal into your house. This matters more in Austin than most people realize. An unbroken aluminum door frame in August essentially becomes a radiator. The break interrupts that path, and when paired with Low-E glass, the door achieves NFRC-rated energy performance that meets Texas building code requirements for fenestration. Our team in Austin has measured meaningful cooling-load reductions after replacing single-pane or non-thermal-broken doors with this series.

Acoustic Performance – Aluminum doors don’t have the natural sound-dampening of wood, so glass selection does the heavy lifting here. Laminated glass cuts mid-range frequencies noticeably – traffic noise from Mopac, music from Rainey Street, the neighbor’s lawn crew. We’ve installed VLX 100 units in condos near downtown Austin where the difference between laminated and standard glass was the difference between sleeping through the night and not. Frosted and obscure glass options don’t change acoustics, but they’re sometimes chosen together with laminated for both privacy and noise control.

Airtightness & Weather Seal – The door’s perimeter gaskets and compression-lock hardware create a measurable air barrier. In an Austin winter, when north winds push against a west-facing door, gaps let cold air in and heated air out. The VLX 100’s multi-point locking system pulls the full height of the panel tight against the gasket, not just the latch point. That’s the functional difference between a door that closes and a door that seals.

Waterproofing – In Central Texas, we get rain in violent bursts – a year’s worth of gentle drizzle would be easier on a door than what we actually get. The VLX 100 frame directs water out through internal weep channels, and the sill design prevents ponding water from crossing into the home. On the installation side, Westlight Windows Austin uses AAMA 812 low-expansion foam sealant on all perimeter joints before the exterior trim goes on. That foam fills the micro-gaps between the frame and rough opening that caulk alone can’t reach.

Wind Resistance – Austin sits on the edge of tornado alley, and even outside severe weather, spring thunderstorms regularly push 50 to 70 mph straight-line gusts. The VLX 100 is wind-load rated for our local climate requirements, and the multi-point hardware keeps panels from bowing inward under negative pressure. For homes in exposed Hill Country locations – think Lago Vista, Spicewood, or anything with a clear western exposure – the laminated glass option further hardens the assembly against wind-borne debris.

Security & Hardware – The multi-point lock is the security story here. A single-point French door latch is a pry-bar target: one point of resistance, and the door flexes around it. The VLX 100 engages three locking points into the frame simultaneously, so the door acts as a structural panel when locked, not a flexible leaf. The handle hardware is solid aluminum, not plastic-insert, and it’s rated for repeated operation – which matters on a high-use door that gets opened twenty times a day during an Austin fall cookout season.

Color & Glass Options

The VLX 100 comes in six finishes, and they map to Austin architecture more cleanly than you’d expect. Premium Black is the current favorite for modern builds and barndominium-style homes – it frames the glass sharply and hides dust well. Pure White suits traditional Hill Country and farmhouse styles, especially with a black handle contrast. Anodized Silver is the honest-metal option: raw aluminum with a clear anodized coating, commercial-grade, and nearly impossible to scratch visibly. Bronze reads warmer than black and works with earth-tone brick homes in older Austin neighborhoods like Crestview or Allandale. Champagne is a warm champagne-gold tone that fits Mediterranean and transitional styles, and Teak Wood is a woodgrain-textured finish that gives the look of timber framing without the rot, warp, or termite concerns we deal with in Central Texas.

On glass: Clear maximizes light and view, and in a double swing door it’s the default for patio-facing openings. Low-E is the energy upgrade – most Austin homeowners choose it for any west- or south-facing door because it cuts solar heat gain measurably. Frosted and Obscure give privacy while letting light through, useful for doors that face a neighbor’s window or a busy street. Tempered is safety glass – required by code for full-lite doors – and it shatters into small cubes instead of dangerous shards. Laminated is the premium option: two glass layers with a plastic interlayer that holds the pane together on impact. It’s the choice for storm resistance, sound control, and added security.

Installation by Westlight Windows Austin in Austin

Aluminum door performance is half product and half installation. A well-built door hung out of square will bind, leak, and eventually fail no matter what the spec sheet says. We’ve seen it in Austin more times than we can count – homeowner buys a premium door from an online supplier, hires a handyman, and six months later the panels don’t meet in the middle.

Our installation process starts with a pre-install inspection of the rough opening. We check the framing for level, plumb, and square before the door ever leaves the truck, because you can’t shim a two-inch frame profile into compliance if the opening is off by half an inch. If corrections are needed, we document them and fix what’s fixable before proceeding – we don’t install over problems and hope for the best.

Once the frame goes in, the most critical step is the perimeter seal. We use AAMA 812 low-expansion foam sealant on all four sides, which fills the gaps between the aluminum frame and rough opening wood. That’s where air and water leak through in sloppy installations – and it’s the step most often skipped. Caulk over an unfilled gap looks fine for a year, then splits and fails. The foam is the actual weather seal; the caulk is just the finish.

We install everything to AAMA 2400/2410 standards – the voluntary installation standards developed by the American Architectural Manufacturers Association that define what a correct window and door installation looks like. Most contractors don’t even know the standard exists. We install to it on every job, which keeps your ViewLux manufacturer warranty intact. A wrong installation can void the warranty on a premium door, and then you own the repair costs out of pocket.

After the door is set, we run a water test on the sill and lower corners, check the lock alignment on all three engagement points, and cycle each panel repeatedly to confirm smooth operation. Then we clean up, haul off the old door and packaging, and walk you through operation and maintenance. Austin’s climate – long hot summers, periodic freeze events, high UV exposure – punishes poorly installed doors fast. Proper AAMA-standard installation is how you keep a VLX 100 operating like new ten years after it goes in.

Frequently Asked Questions – VLX 100 Double Swing / French Door

What is the lead time for the VLX 100 Double Swing / French Door?

Lead time is typically 3 to 6 weeks depending on finish and glass configuration, plus a day for installation. Custom widths over 96 inches require engineering review and add time. Call us at (254) 322-3468 for current production schedules – ViewLux updates them regularly, and we’ll give you a realistic date instead of a guess.

Does the VLX 100 qualify for energy tax credits?

Possibly. The VLX 100 with Low-E glass meets or exceeds the efficiency thresholds for the federal energy-efficient home improvement credit in the door category, depending on your specific glass package and the tax year. Eligible doors require an NFRC label showing a U-factor and solar heat gain coefficient below the IRS-set limits. We can pull the specific NFRC-rated values for your configuration and help you confirm eligibility. Call (254) 322-3468 and we’ll walk you through what your glass choice means for the credit.

What warranty comes with the Double Swing / French Door?

The VLX 100 carries ViewLux’s manufacturer warranty on the frame, glass, and hardware, and the warranty stays valid when the door is installed by an authorized partner like Westlight Windows Austin. Improper installation by an unauthorized contractor can void the manufacturer warranty. Our installation workmanship is also covered by our own warranty. We can provide full warranty documentation before you commit to a project – call (254) 322-3468.

Can I customize the size?

Yes, within the system’s structural limits. The VLX 100 is built to order, so we can accommodate custom widths and heights up to the 96-inch maximum span, plus non-standard configurations like offset panels or a fixed panel combined with a single active swing. Heights are also flexible, though door hardware placement must follow code. If your opening is unusual, we measure on-site in Austin and verify what the frame can support before ordering. Call (254) 322-3468 to schedule a free measurement.

How do I maintain aluminum frames?

Aluminum doors are low-maintenance compared to wood: clean the frame with mild soap and water twice a year, more often if you’re near oak trees or construction dust. Lubricate the hinge pins and multi-point lock mechanism annually with a dry silicone spray. The Austin dust and occasional freeze-thaw cycle can gum up track surfaces over time, so keep the bottom rail and sill clear of debris. The factory finish will not need refinishing in the life of the door – that’s the main reason Austin homeowners choose aluminum over wood in the first place.

Get a Quote – VLX 100 Double Swing / French Door in Austin

If you’re planning a new build, a patio upgrade, or a whole-home door replacement in the Austin area, Westlight Windows Austin can give you a firm, written quote on the VLX 100 Double Swing / French Door. We’ll come to your home, measure the opening, walk you through finish and glass options, and price it honestly – no surprises after the fact. Call us at (254) 322-3468 to start your project or book a free on-site measurement.

Written by the team at Westlight Windows Austin, authorized ViewLux installation partner serving Austin, TX and the surrounding Hill Country.
